Microsoft Access is a database management system that offers an intuitive user interface and robust database capabilities within the Microsoft Office suite. On the other side, MySQL is an open-source relational database that is widely used for web-based applications and large-scale data management. While MS Access is excellent for small to medium-sized databases and offers seamless integration with other Microsoft products, MySQL excels in handling large datasets and offers high performance, reliability, and flexibility.
The need to connect MS Access to MySQL often arises when organizations aim to leverage the strengths of both platforms. For instance, you might want to perform complex queries and data analysis using MySQL while still maintaining an MS Access front-end for ease of use and reporting.
Enter the Devart ODBC Driver—a powerful tool that acts as a bridge between MS Access and MySQL. This driver allows for real-time data synchronization and offers enhanced security features, making it an ideal choice for this integration. This article will guide you through the steps to achieve this connection efficiently.
Pre-Requisites
Before you proceed with connecting Microsoft Access to MySQL using the Devart ODBC Driver, it’s essential to ensure that you have the following software installed and properly configured on your system:
Microsoft Access
Ensure that you have a working version of Microsoft Access installed. This could be a standalone version or part of the Microsoft Office suite. Verify that you can create or open existing databases.
MySQL Server
You should have MySQL Server installed and running either on your local machine or a remote server. Make sure you have the necessary credentials (username, password) and know the server’s address if it’s not local.
ODBC Driver for MySQL (Devart)
Download and install the Devart ODBC Driver for MySQL. This driver will act as the intermediary that allows Microsoft Access to communicate with the MySQL Server. Ensure that you choose the correct version (32-bit or 64-bit) that matches your Microsoft Access installation.
Having these software components in place is crucial for the successful integration of MS Access and MySQL. Once you’ve verified that you have all of these installed, you’re ready to move on to the subsequent steps for establishing the connection.
Installing the MySQL ODBC Connector on Windows
Follow this step-by-step guide to install the MySQL ODBC Connector on your Windows computer:
Download Installer: Navigate to the MySQL official website or another trusted source to download the MySQL ODBC Connector installer.

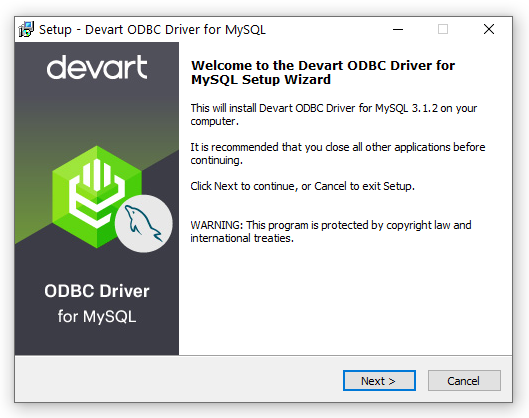

Execute Installer: Locate the downloaded installer file on your computer and double-click it to initiate the installation process.
Handle Overwrite Warning: If a previous version of the MySQL ODBC Connector is already installed, you may receive a warning about overwriting files. It’s advisable to uninstall the older version before continuing. Click ‘Yes’ to proceed.
Choose Components: During installation, you’ll encounter a ‘Select Components’ screen. Here, you can opt to install the 64-bit driver version. If you don’t require it, uncheck the corresponding box. Additional options for installing Help and Manual files are also available.

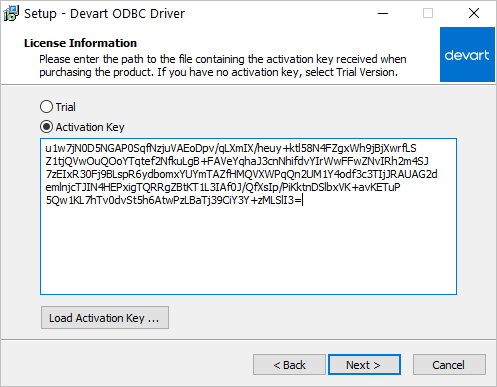

Review License Information: A ‘License Information’ dialog will appear. Choose the appropriate license type and activate the product. For evaluation purposes, select the ‘Trial’ option.
Input Activation Key: If you possess an activation key, choose the ‘Activation Key’ option and paste the key from your registration email or Customer Portal account into the designated field.
Load Activation Key File: If your activation key is in a file, click ‘Load Activation Key’ and navigate to the file’s location on your computer.
Continue Installation: Click ‘Next’ to move forward with the installation.
Start Installation: Click ‘Install’ to initiate the installation process. Once completed, click ‘Finish’.
Configure Driver: After installation, you’ll need to configure the MySQL ODBC Connector according to your specific requirements.
System Restart: It’s recommended to restart your system to ensure all changes are effectively applied.
By following these steps, you’ll successfully install and configure the MySQL ODBC Connector on your Windows machine.
How to Connect MS Access to MySQL via Devart ODBC Driver
In this section, we’ll guide you through two methods of connecting Microsoft Access to MySQL using the Devart ODBC Driver: importing MySQL data into MS Access and linking to MySQL data from MS Access.
Importing MySQL Data Into Microsoft Access
- Launch MS Access: Open the Microsoft Access database where you want to import the MySQL data.
- Navigate to External Data: Go to the External Data tab located in the ribbon at the top.
- Select ODBC Database: Click on New Data Source under the External Data tab, then choose From Other Sources and finally select ODBC Database.
- Choose Import Option: In the dialog box that appears, select Import the source data into a new table in the current database and click OK.
- Select Data Source: In the next dialog box, go to the Machine Data Source tab and choose the DSN you’ve configured for MySQL. Click OK.
- Import Tables: A new dialog box will appear listing MySQL tables. Select the tables you wish to import and click OK.
- Confirmation and Save Steps: If the import is successful, a confirmation message will appear. Optionally, you can save these steps for future use by checking the Save import steps box. Click Close.
Linking to MySQL Data in Microsoft Access
Launch MS Access: Open your Microsoft Access database.
Navigate to External Data: Go to the External Data tab in the ribbon.
Select ODBC Database: Click on New Data Source, then choose From Other Sources and select ODBC Database.
Choose Link Option: In the dialog box, select Link to the data source by creating a linked table and click OK.
Select Data Source: Go to the Machine Data Source tab and choose the DSN you’ve configured for MySQL. Click OK.
Link Tables: In the Link Tables dialog box, select the MySQL tables you want to link to and click OK.
Unique Record Identifier: You’ll be prompted to choose a unique record identifier. It’s advisable to select the primary key from the MySQL table. Click OK.
Verify Linked Tables: The linked tables will now appear in the Tables navigation pane on the left. Double-click to view their contents.
By following these steps, you can either import data from MySQL into MS Access or link to MySQL tables for real-time data access, all through the Devart ODBC Driver.
Benefits of Using Devart ODBC Driver
The Devart ODBC Driver offers a range of advantages that make it an excellent choice for connecting Microsoft Access to MySQL. Here are some of the key benefits:
Real-time Data Analysis
One of the most compelling features of the Devart ODBC Driver is its ability to facilitate real-time data analysis. This means you can pull data from your MySQL database into Microsoft Access and analyze it in real-time, without any lag. This is particularly useful for organizations that require immediate insights for decision-making.
Enhanced Security Features
Security is a critical concern when dealing with database connections, and the Devart ODBC Driver doesn’t disappoint in this regard. It comes with enhanced security features that ensure your data remains protected during the transfer process. Whether it’s SSL encryption or advanced data integrity checks, you can rest assured that your data is in safe hands.
Versatility and Compatibility
The Devart ODBC Driver is incredibly versatile and compatible with a wide range of database management systems, not just MySQL and MS Access. This means you can use the same driver for different database connections, making it a cost-effective and efficient solution for your data integration needs.
In summary, the Devart ODBC Driver offers real-time data analysis, robust security features, and exceptional versatility, making it an ideal choice for those looking to integrate Microsoft Access with MySQL.
Conclusion
In this guide, we’ve walked you through the comprehensive steps to connect Microsoft Access to MySQL using the Devart ODBC Driver. The process involves either importing MySQL data into MS Access or linking MS Access to MySQL tables, both facilitated seamlessly by the Devart ODBC Driver. The advantages of using this method are numerous, including real-time data analysis, enhanced security features, and exceptional versatility and compatibility with various database systems.
As a final recommendation, if you’re looking for a reliable, secure, and efficient way to integrate MS Access with MySQL, the Devart ODBC Driver is an excellent choice. Its robust features not only simplify the connection process but also add a layer of functionality and security that is indispensable in today’s data-driven environment.
